Documentation

Install, run and inspect PyClef outputs.

PyClef can be used as a Windows desktop app or from Python. This guide covers installation, processing options, generated files, MIDI playback and review tools.

Download options Install with pip

Install from PyPI

Use pip when you want the Python package, command-line entry point and programmatic API.

pip install pyclef

Launch the app

Open the desktop interface from the terminal or from a Python script.

pyclef

from pyclef import Pyclef
Pyclef()

External tools

PDF input uses Poppler. MP3/video exports use FFmpeg. SoundFont rendering uses FluidSynth. The desktop diagnostics panel reports what is available.

Poppler   -> PDF pages
FFmpeg    -> MP3 and MP4
FluidSynth -> SoundFont piano

Guided interface tour

Desktop processing pipeline

The desktop flow moves from score selection to progress tracking and result review. Screenshots adapt to the current website theme.

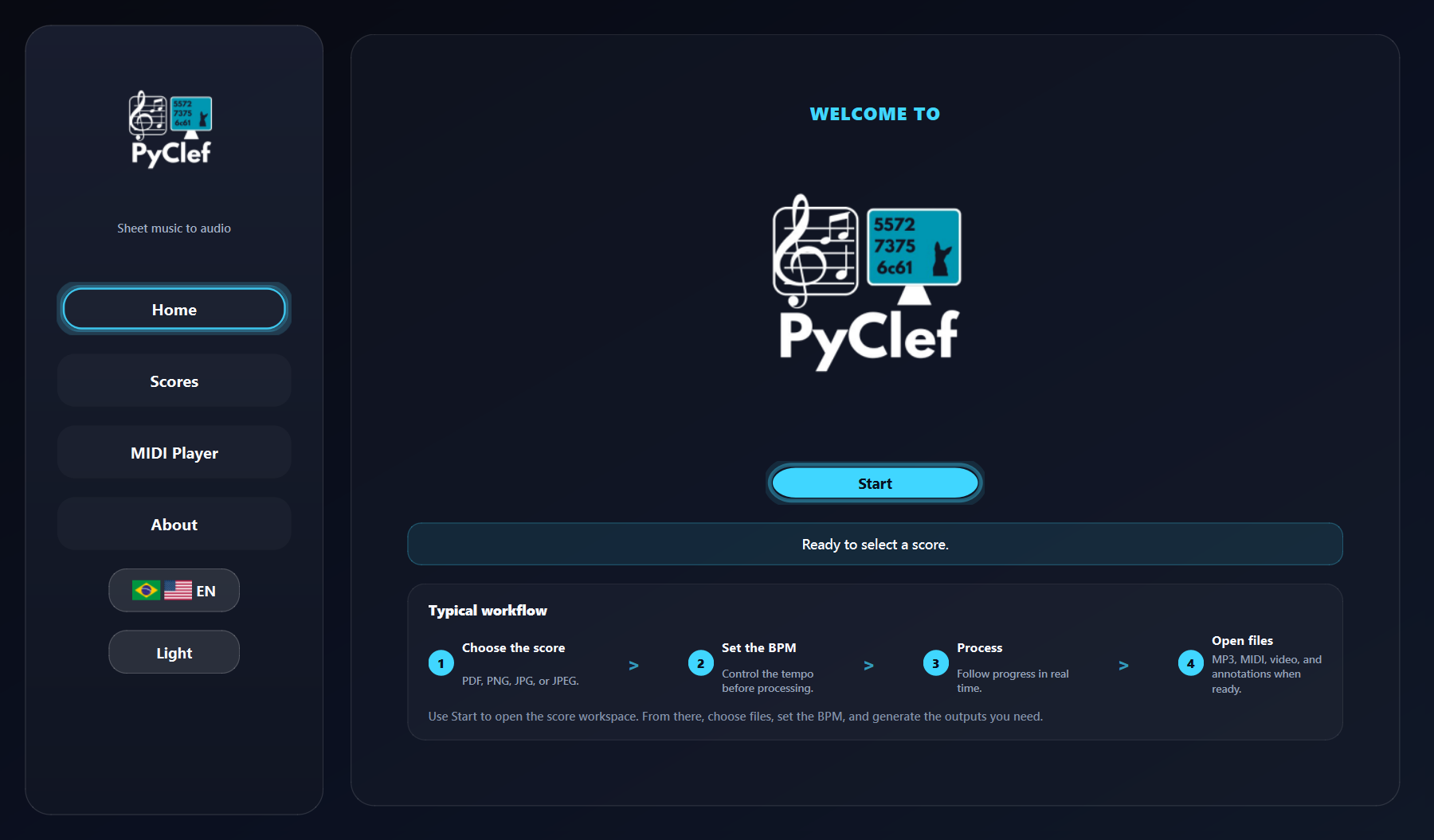

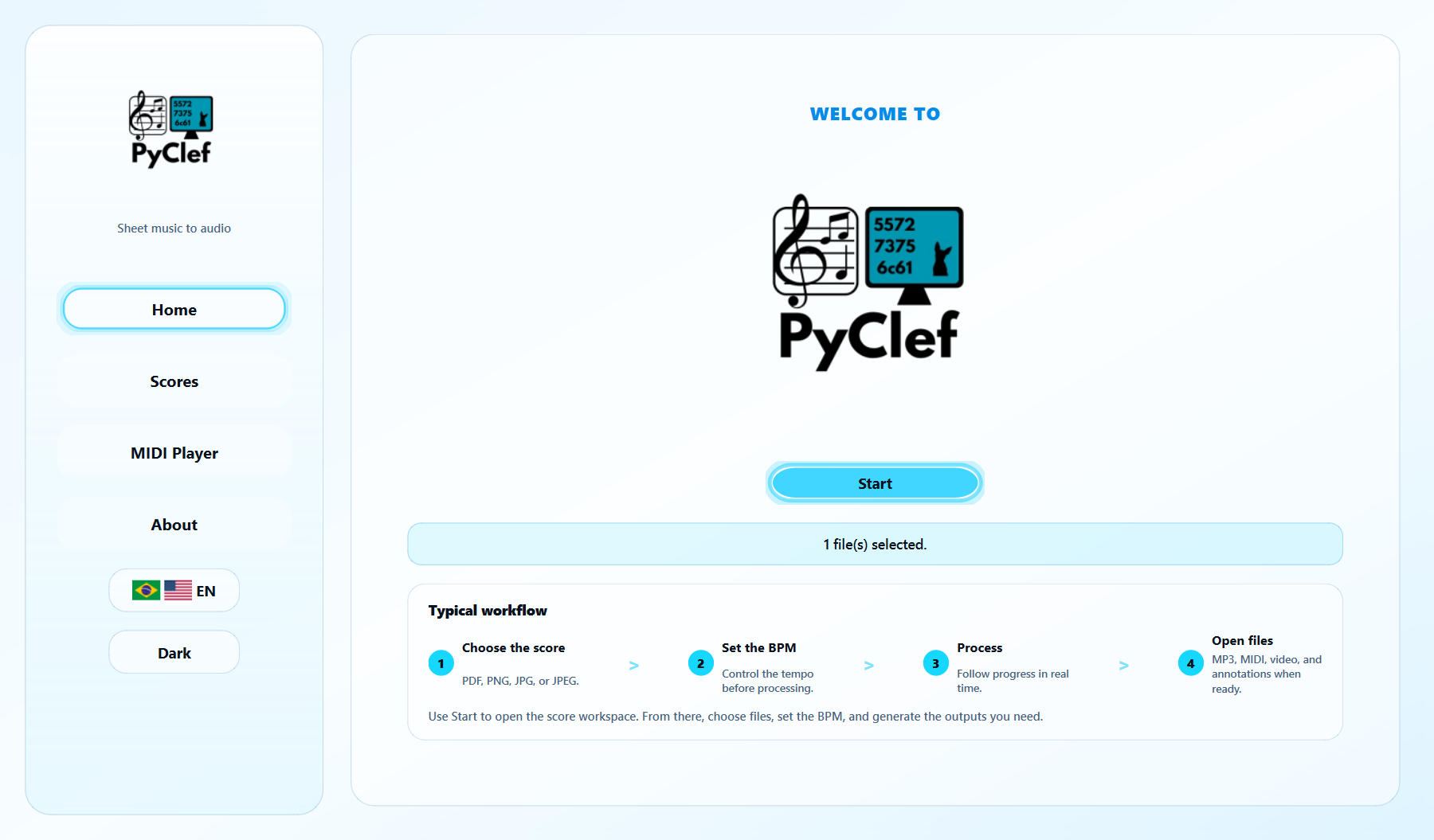

Home

Start from a focused welcome screen and move into the score workspace when ready.

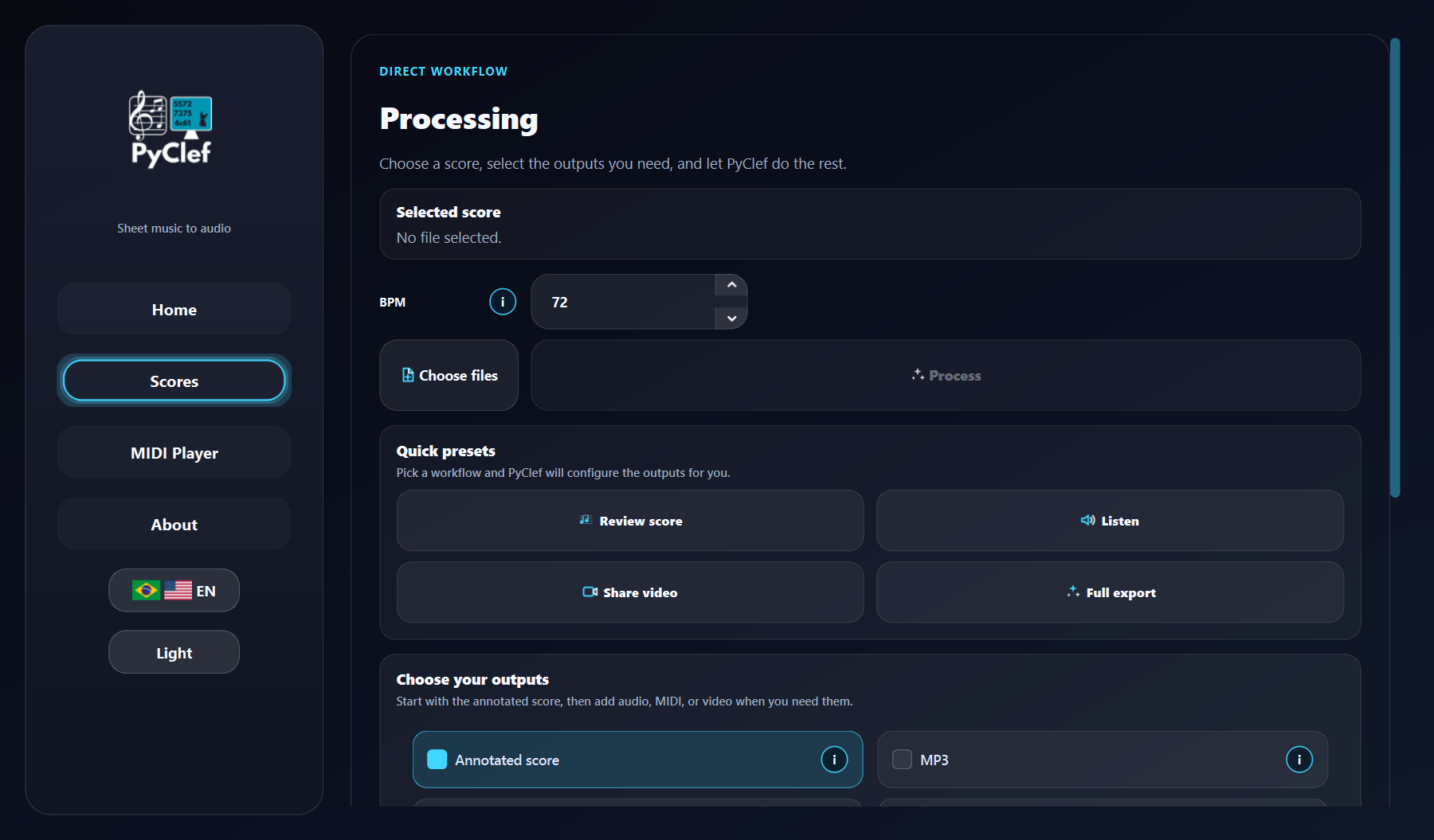

Score workspace before file selection in dark mode

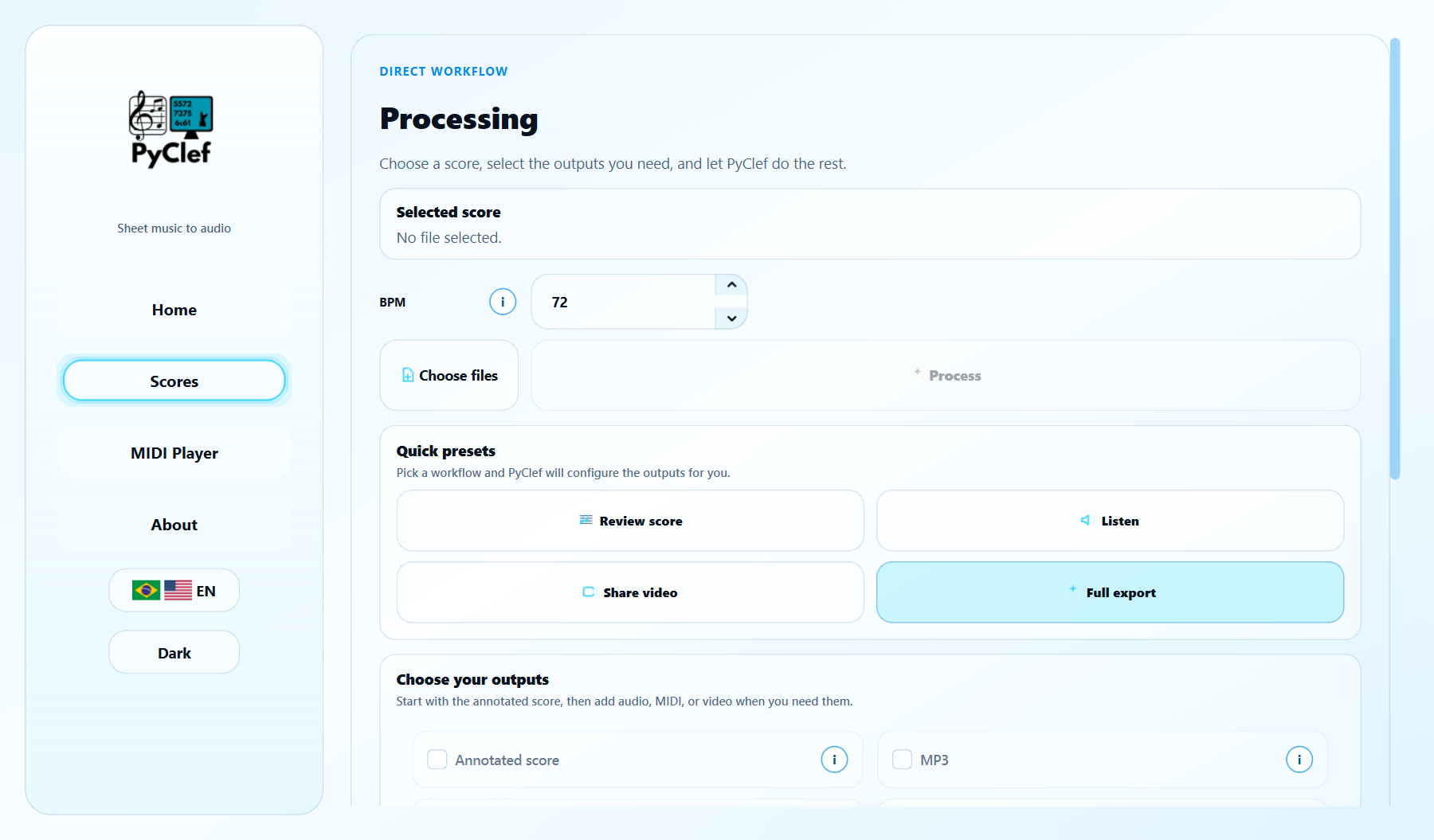

Score workspace before file selection in light mode

Scores

Select PDF or image files, set BPM and choose how much information PyClef should generate.

Selected score and output options in dark mode

Selected score and output options in light mode

Outputs and presets

Use presets for review, listening or video, then fine-tune annotation, audio, MIDI, video and report options.

Progress

Follow the progress bar and optional technical logs while detection, inference and export run.

Completed processing and result buttons in dark mode

Completed processing and result buttons in light mode

Results

Open the result folder, annotated pages, audio, MIDI, video and scientific report from one place.

Function reference

What each desktop option does.

PyClef keeps common actions visible and places experimental controls in advanced options.

Select scores

Loads PDF, PNG, JPG or JPEG files and creates a result folder from the input name.

BPM

Defines the tempo used for MIDI, MP3 and synchronized video timing.

Presets

Quickly configures the workflow for review, listening, video sharing or full export.

Annotated score

Exports labeled score images. Clean mode groups close notes; detailed mode includes confidence information.

MP3 audio

Renders a listening file using the internal synthesizer or SoundFont piano when available.

MIDI

Exports note events for playback, inspection and use in external music software.

Video style

Creates score video, piano-roll video or a combined score plus piano-roll review video.

Scientific report

Summarizes confidence, pitch classes, hand distribution, durations and review recommendations.

Advanced recognition

Optional preprocessing and staff-crop recovery can help dense scans while keeping review data visible.

Generated outputs

Review the files PyClef actually exports.

Each run creates a result folder with annotated pages and the optional playback files selected in the interface.

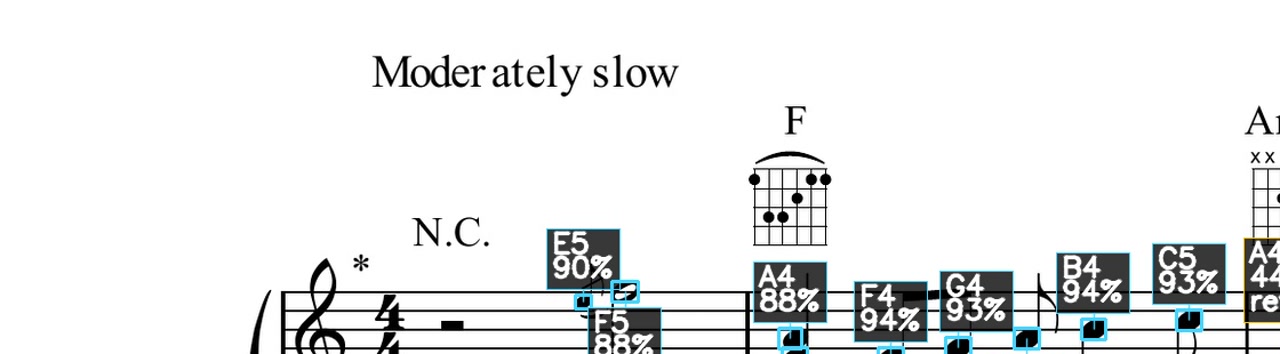

Clean annotation crop focused on musical staves

Annotated score

Detected notes on the score

The annotated page keeps the original staff visible while adding note names, hand colors and review markers.

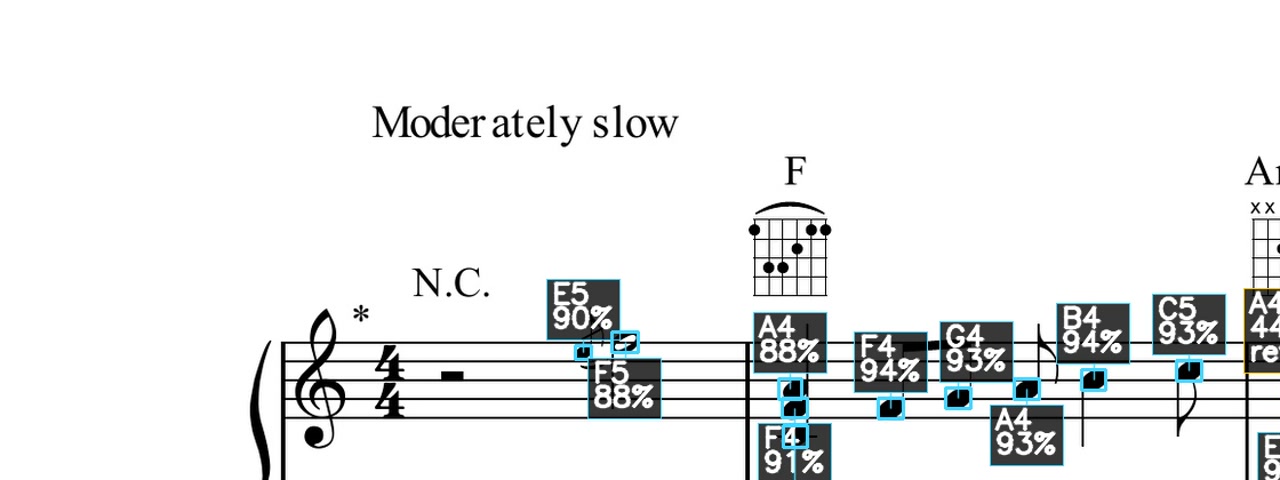

Detailed annotation

Confidence and review cues

Detailed labels expose confidence percentages and mark notes that may deserve a closer manual check.

MP3

Rendered audio

Generate an audio file for listening checks, sharing and quick musical review.

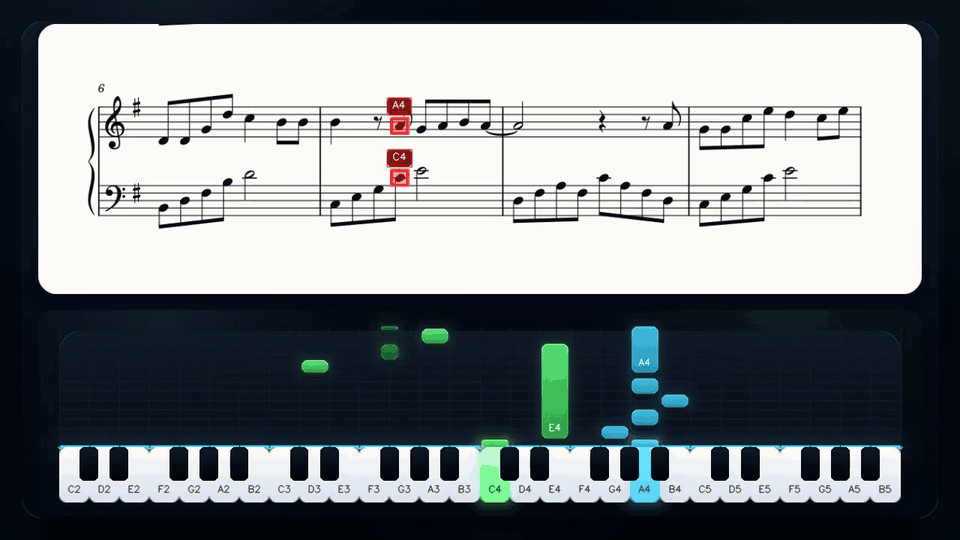

Animated video detail crop focused on active notes

MP4

Score plus piano-roll video

The synchronized video can combine the active score region with a piano-roll view, making playback easier to study.

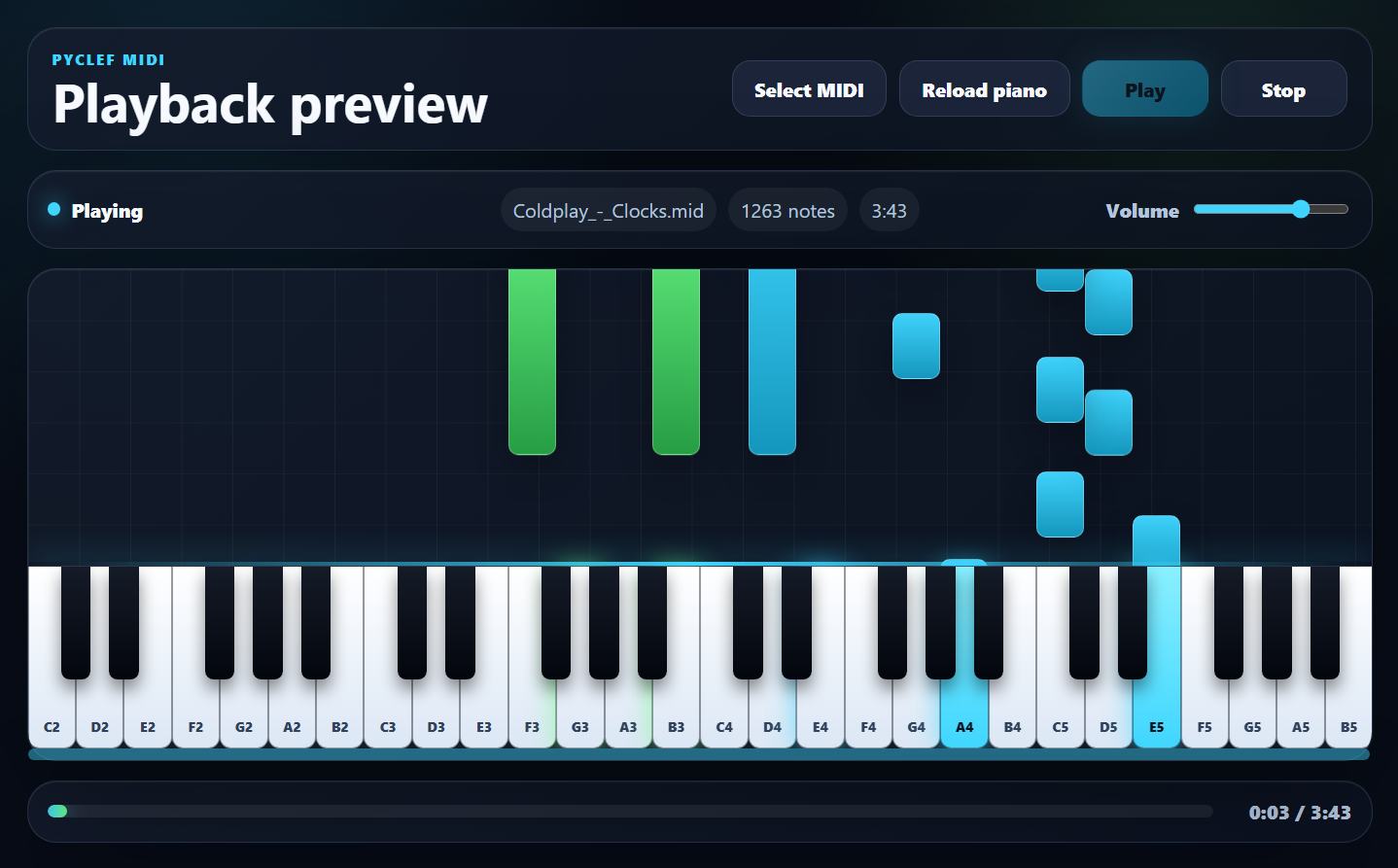

MIDI Player

Review generated MIDI files with a piano-roll view.

The player loads generated MIDI, applies the piano SoundFont and shows timing with a waterfall view and responsive keyboard.

MIDI Player

Review generated MIDI files with a piano-roll view.

Use the integrated player to inspect timing, hand separation and note density before sharing the final result.

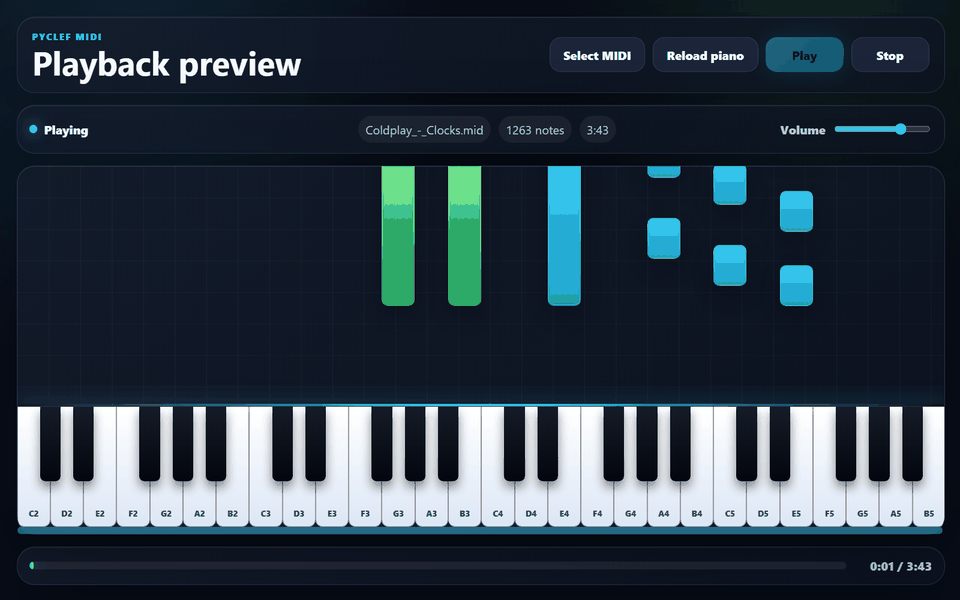

Waterfall playback

Notes fall toward the keyboard in sync with playback, making timing problems easier to inspect.

Dynamic keyboard

The piano range adapts to the MIDI file and labels white keys with note names.

Hand-aware colors

Right-hand and left-hand notes use different colors, including darker tones for black-key notes.

Python API

Use PyClef from your own scripts.

The desktop app is the easiest entry point, but the processing engine can also be called programmatically.

`Pyclef()`

Starts the desktop application from Python.

from pyclef import Pyclef
Pyclef()

`process_score_files()`

Runs the OMR pipeline and returns paths for generated outputs.

from pyclef import process_score_files

result = process_score_files(
    ["score.pdf"],
    bpm=90,
    output_options={
        "annotations": True,
        "audio": True,
        "midi": True,
        "video": False,
        "scientific_report": True,
    },
)

`collect_environment_diagnostics()`

Checks whether model files, PDF tools, FFmpeg, SoundFont and FluidSynth are available.

from pyclef import collect_environment_diagnostics

for check in collect_environment_diagnostics("en"):
    print(check.name, check.status)
